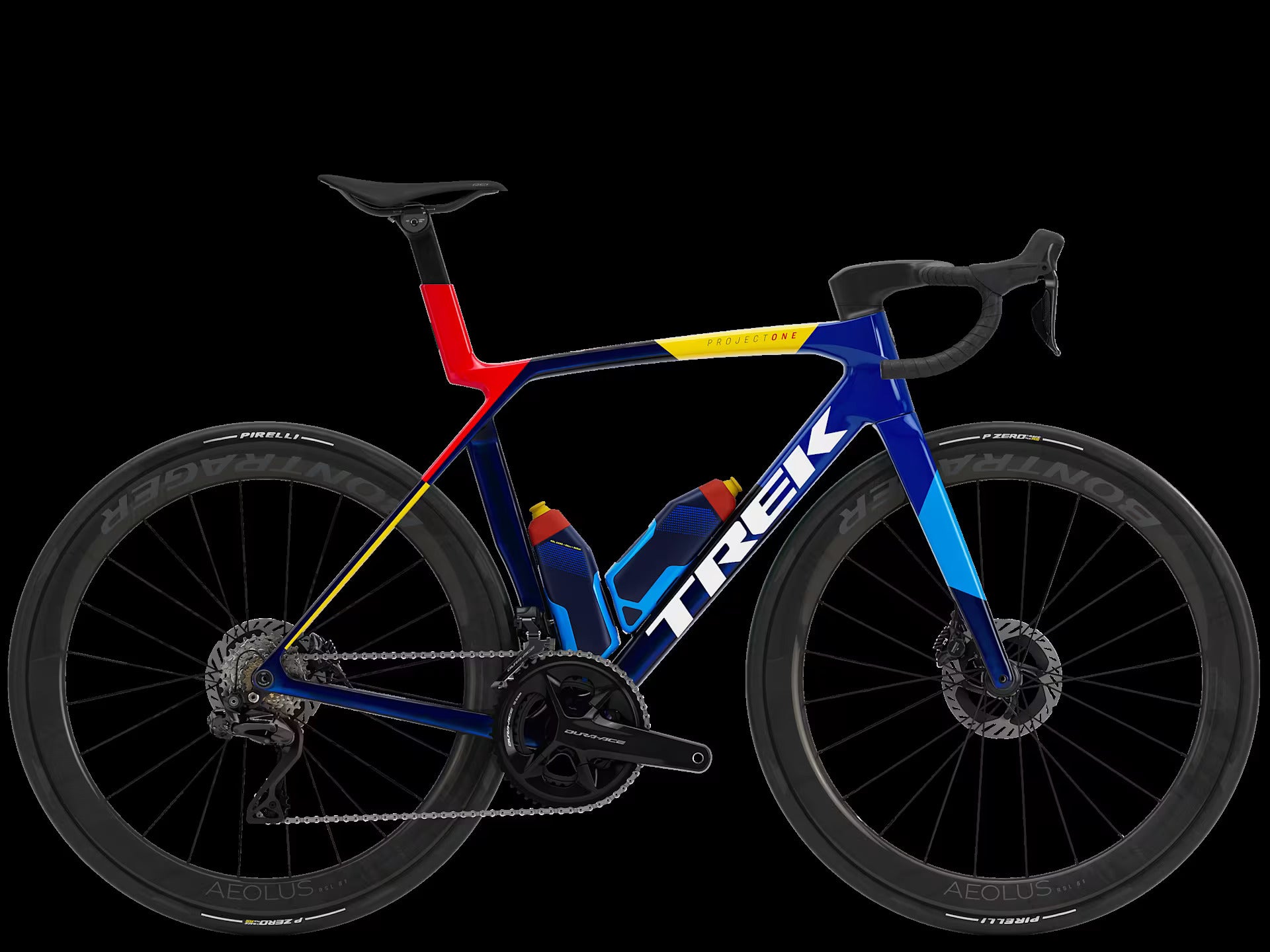

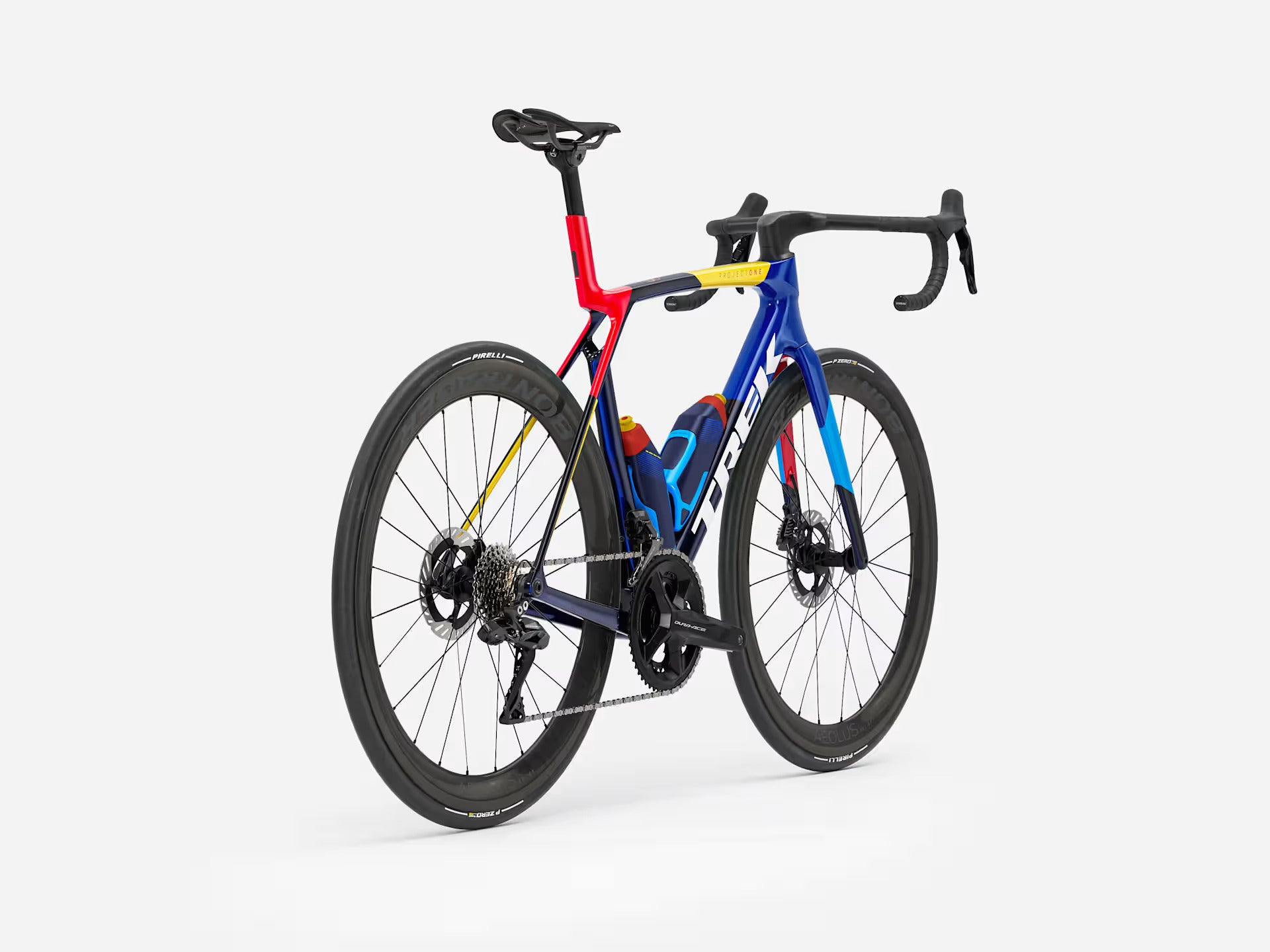

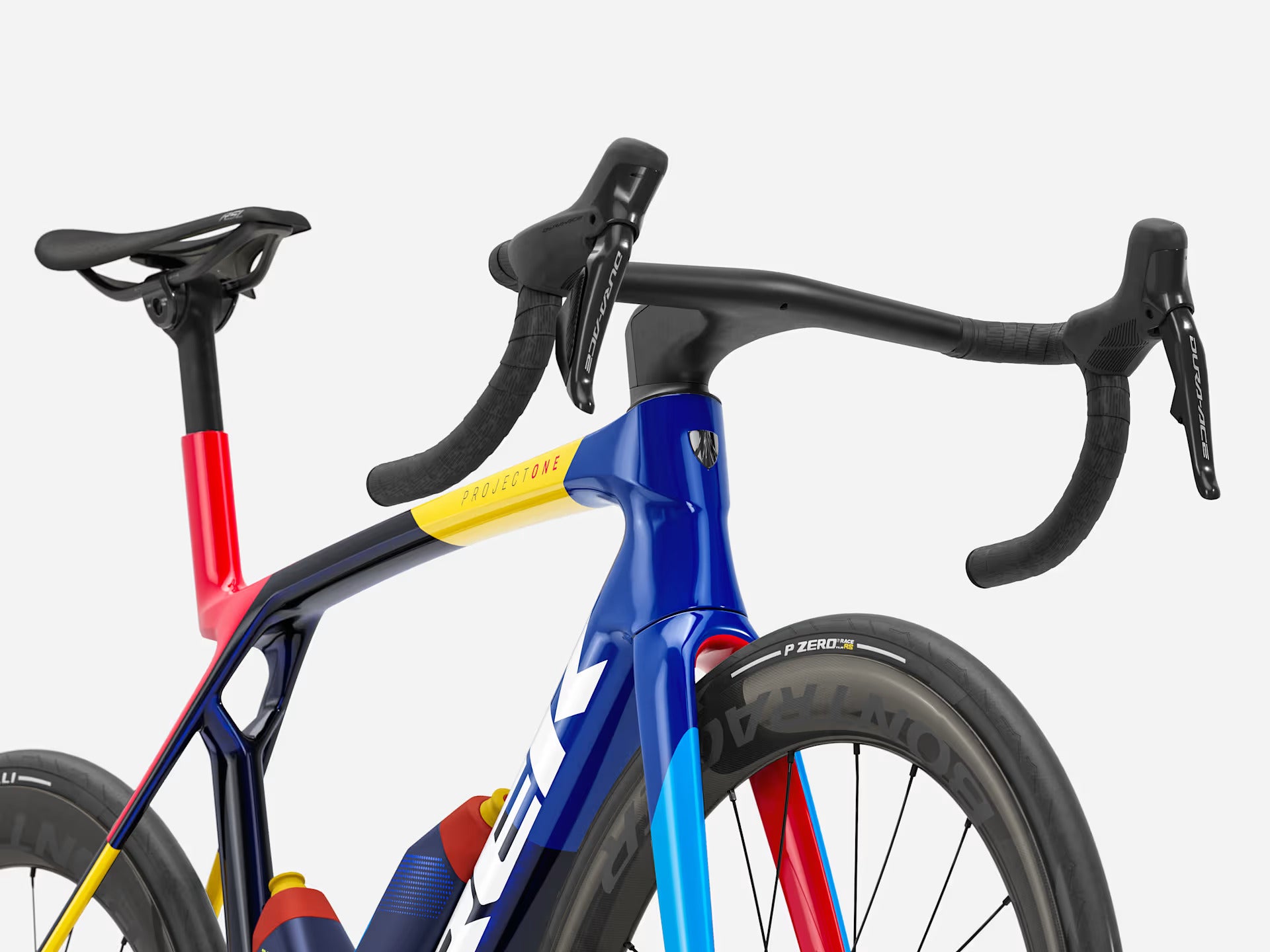

Madone SLR 9 Gen 8 Team Replica Medium
$17,999.00
In StockIn StockOut of stock-
The Madone SLR 9 Gen 8 is built for dominating the roads with equal parts light weight and aerodynamic speed. It’s crafted from our highest-level 900 Series OCLV Carbon that’s not only insanely light, but delivers aerodynamic shapes for crushing descents and straightaways. This build comes ready to win with Shimano's top-of-the-line Dura-Ace Di2 wireless drivetrain, Bontrager Aeolus RSL 51 carbon wheels, a Trek Aero RSL one-piece carbon bar/stem and RSL Aero Bottles and Cages for more drag reduction.
-
*Please note – spec applies to all sizes unless listed separately
Frameset
Frame with Fork

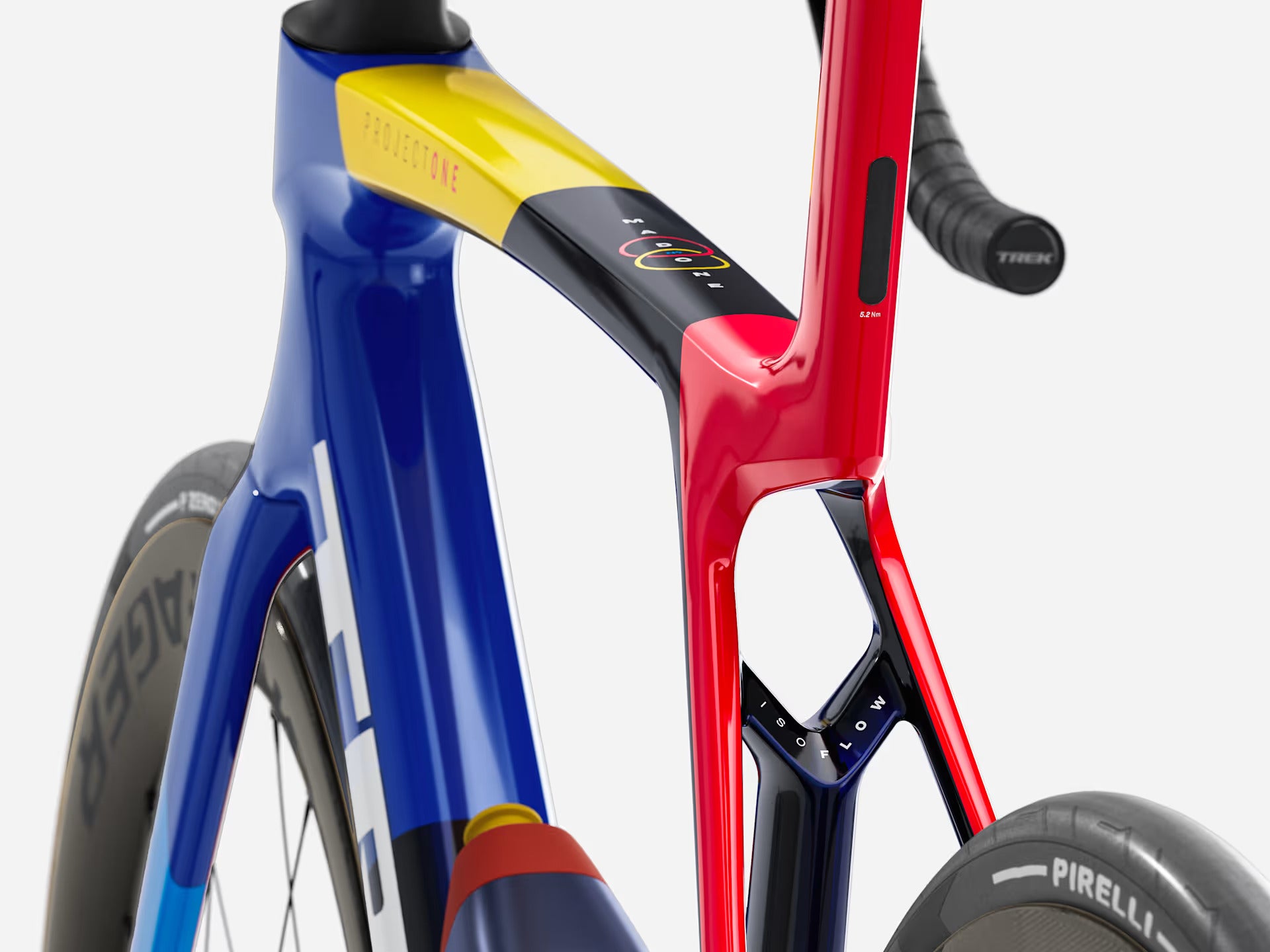

900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axleFork
Weight
WeightML - 7.05 kg/15.55 lb (with TLR sealant, no tubes, no bottles/cages)
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
E-system
Battery
Shimano BT-DN300Charger
Charging cable includedDrivetrain
Shifter
Shimano Dura-Ace R9270 Di2, 12 speedFront derailleur
Shimano Dura-Ace R9250 Di2, braze-on, down swingRear derailleur
Shimano Dura-Ace R9250 Di2, 34T max cog*Crank
XS, S
Shimano Dura-Ace R9200, 52/36, 165 mm lengthSize: ML, L, XL
Shimano Dura-Ace R9200, 52/36, 172.5 mm lengthSize: XL
Shimano Dura-Ace R9200, 52/36, 175mm length
Bottom bracket
Praxis, T47 threaded, internal bearing
Cassette
Shimano Dura-Ace R9200, 11-30, 12-speed
Chain
Shimano Dura-Ace/XTR M9100, 12-speed
Max. chainring size1x: 54T, 2x: 56/43
Wheels
- Wheel front
-
Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm rim depth, 100x12 mm thru axle
- Wheel rear
-
Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51 mm rim depth, Shimano 11/12 freehub, 142x12 mm thru axle
- Skewer front
- Bontrager Switch chamfered thru axle
- Skewer rear
- Bontrager Switch chamfered thru axle, removable lever
- *Tyre
-
Size: XS, S, M, ML, L, XL
Bontrager Aeolus RSL RD, Tubeless-Ready, cotton construction, aramid bead, 170 tpi, 700x28 mm
Size: XS, S, M, ML, L, XL
Pirelli P Zero Race, 120 tpi, tubeless-compatible, 700x28 mm - Tyre part
-
Bontrager TLR sealant, 180 ml/6 oz
- Tube
- Pirelli P Zero SmarTube, TPU
- Max tyre size
- 32 mm (as measured, see manual for details)
Components
- *Saddle
-
Size: XS, SAeolus RSL, carbon rails, 155 mm widthSize: XS, S, M, ML, L, XL
Aeolus RSL, carbon rails, 145 mm width
- Seatpost
- Madone aero carbon seat post, 0 mm offset, short length

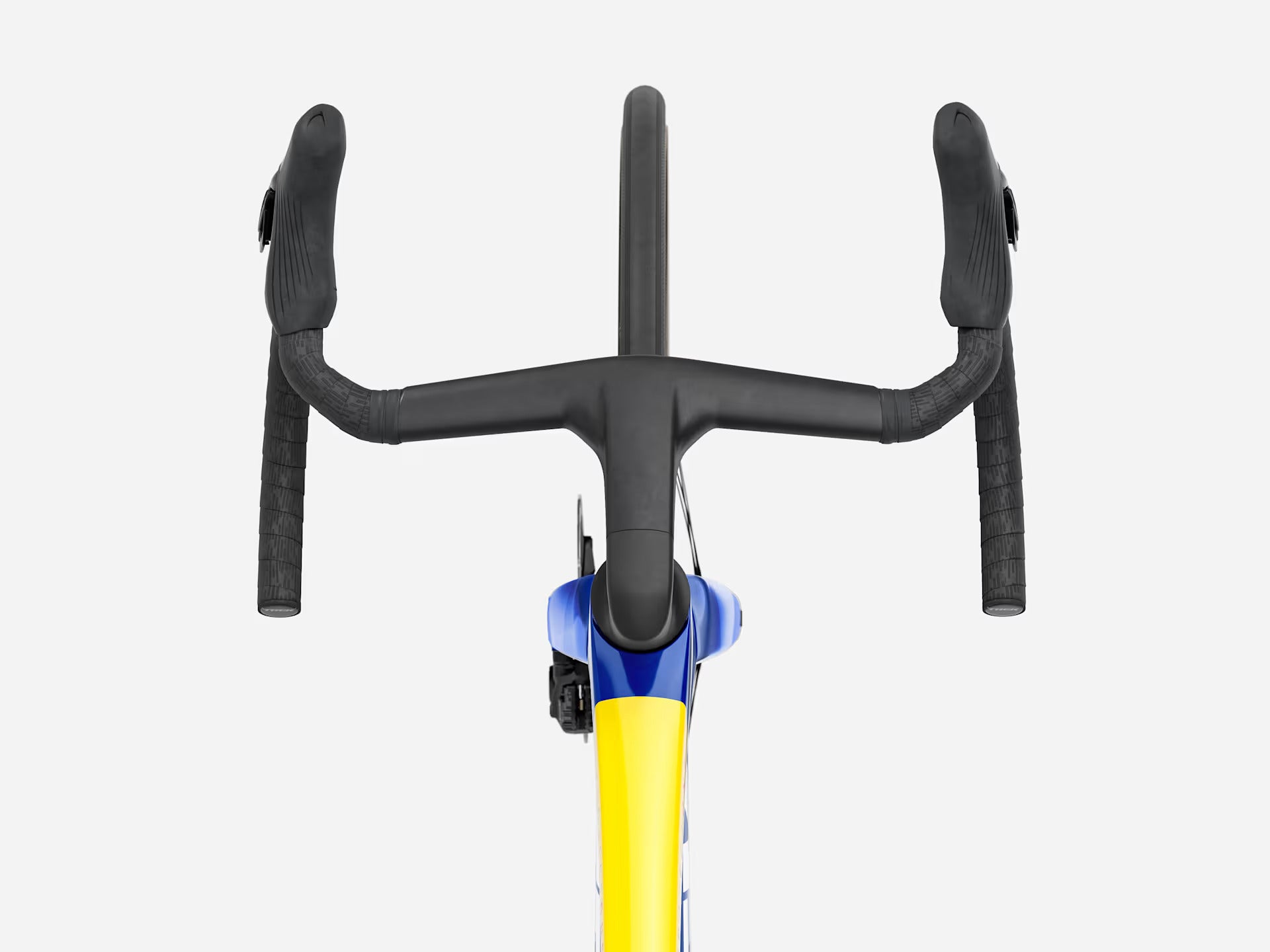

- *Handlebar/stem (integrated)
Size: XS
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 35 cm control width, 38 cm drop width, 80 mm stem length
Size: S
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 37 cm control width, 40 cm drop width, 90 mm stem length
Size: M
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 90 mm stem length
Size: ML, L
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 39 cm control width, 42 cm drop width, 100 mm stem length
Size: XL
Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 41 cm control width, 44 cm drop width, 110 mm stem length
- Handlebar tape
- Trek EcoTack
- Brake
Shimano Dura-Ace hydraulic disc, flat mount- Brake rotor
Shimano CL900, CentreLock, 160 mm- Rotor size
- Max brake rotor sizes: 180 mm front, 160 mm rear
**Trek Bikes reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
Size Rider Height Inseam XS (47cm) 147 - 162 cm
4'10" - 5'4"
67 - 74 cm
26" - 29"
S (50cm) 162 - 166 cm
5'4" - 5'5"
74 - 76 cm
29" - 30"
M (52-54cm) 166 - 177 cm
5'5" - 5'10"
76 - 81 cm
30" - 32"
ML (56cm) 177 - 184 cm
5'10" - 6'0"
81 - 84 cm
32" - 33"
L (58cm) 184 - 193 cm
6'0" - 6'4"
84 - 88 cm
33" - 35"
XL (60-62cm) 193 - 219 cm
6'4" - 7'2"
88 - 100 cm
35" - 39"
